Lecture 31
Coppi, Greene, and Johnson: Resistive Interchange

Overview

Resistive interchange is the natural bridge between the local buoyancy arguments of Suydam and the reconnection physics of the tearing lecture. The regime we want to isolate is deliberately subtle: the plasma is tearing stable in the outer-region sense, so that the classical magnetic matching parameter satisfies \(\Delta '<0\), and it is also Suydam stable, so that the local ideal singularity is below threshold. Thus neither ordinary FKR tearing nor ideal interchange is allowed to explain the mode.
That is exactly why the Coppi–Greene–Johnson problem is so useful. Once the ideal Suydam problem is stable, the outer-region radial displacement near the resonant surface is already known as a Frobenius solution. The job of the resistive layer is not to invent a new outer solution; it is to produce an inner solution for \(\xi _r\) that can be matched to that Suydam form. The surprising result is that a pressure-gradient drive inside the layer can still produce a growing, island-forming branch even when \(\Delta '\) is unfavorable.
The key lesson is that two parity classes are present. One is interchange-like, with a finite radial displacement at the resonant surface but vanishing helical flux there. The other is tearing-like, with finite helical flux at the surface and therefore genuine island formation. In the second case a plasma can be stable according to the classical outer tearing index \(\Delta '\) and yet still develop islands because pressure gradients in a low-shear layer do part of the destabilizing work.

Historical Perspective

The sheet-pinch paper of Furth, Killeen, and Rosenbluth made the matched-asymptotic idea famous: ideal MHD outside, a narrow resistive layer inside Furth et al. (1963). Coppi, Greene, and Johnson then carried that logic into the diffuse linear pinch, where the equilibrium curvature is cylindrical rather than gravitational and finite pressure can no longer be ignored Coppi et al. (1966). Their paper is still remarkable for how explicitly it refuses to draw hard category lines: “interchange,” “kink,” and “tearing” are shown to be closely related limits of the same resistive-layer problem.
That old lesson has aged very well. In modern tokamak language, the low-shear pressure-driven \((m,n)=(1,1)\) structures discussed in hybrid and sawtooth-free plasmas Stober et al. (2007) are best thought of as descendants of this same resistive-interchange / quasi-interchange family. The geometry is now toroidal and the nonlinear saturation is far richer, but the analytic seed is already present in the cylindrical problem Jardin et al. (2015); Krebs et al. (2017).

Caution

Three distinctions are easy to blur.
First, \(\Delta '\) is an outer matching index. It measures how the ideal solution leans into an inner layer, just as in the tearing lecture, Eq. (30.2). It does not by itself know about local pressure-gradient drive.
Second, Suydam’s criterion, Eq. (25.17), is an ideal local criterion. Passing it only says that the ideal singularity is mild enough to be regularized without an immediate ideal interchange catastrophe. It does not say that the resistive problem is stable.
Third, Coppi’s “even” and “odd” labels refer to the parity of the radial displacement \(\bar {\xi }_r\), not the parity of the perturbed flux \(\psi \). Since the two have opposite parity in the layer equations, this matters.

31.1 The resistive window left open by Suydam

The outer ideal problem is still the Newcomb problem developed in the diffuse-pinch lecture, with local resonant surface defined by

F(r) \equiv \frac {mB_\theta (r)}{r} + k B_z(r)=0, \qquad k=-\frac {n}{R_0}. \tag{31.1}

At such a surface, the local ideal energy functional reduced in Eq. (25.8) gives the dimensionless pressure-drive parameter

D_s \equiv -\frac {2\muo k^2}{r_s[F'(r_s)]^2}\,p'(r_s) = -\frac {2\muo q_s^2}{r_s B_z^2(r_s)\,[q_s'(r_s)]^2}\,p'(r_s), \tag{31.2}

which was already used to write Suydam’s criterion in the form

D_s \le \frac 14. \tag{31.3}

The physically interesting regime for this lecture is not the ideal-interchange regime \(D_s>1/4\), and it is not the classical tearing regime \(\Delta '>0\). We will instead keep the two stability assumptions

\Delta '<0, \qquad 0<D_s<\frac 14 . \tag{31.4}

The pressure decreases outward, so the curvature/pressure combination is destabilizing, but magnetic shear is still strong enough that ideal MHD remains locally regular. The current profile is also chosen so that the ordinary outer tearing mode is stable.

Why flat shear matters. Equation (31.2) says it plainly:

D_s \propto \frac {|p'(r_s)|}{[q_s'(r_s)]^2}. \tag{31.5}

Thus a mild pressure gradient can become important if the magnetic shear is sufficiently small. That is the first conceptual connection to the gravitational-interchange lecture. In both cases there is a buoyancy-like drive; in the cylindrical plasma it is magnetic curvature rather than true gravity, and the quantity that opposes it is not just field strength but field-line shear.

The outer solution is already fixed. Near the resonant surface write

x \equiv r-r_s.

The local ideal equation then reduces to the Suydam form

\dd {}{x}\left (x^2\dd {\xi _r}{x}\right )+D_s\,\xi _r=0. \tag{31.7}

Let

h\equiv \frac 12\left [\sqrt {1-4D_s}-1\right ], \qquad -\frac 12<h<0 \qquad (0<D_s<1/4). \tag{31.8}

Then, on either side of the layer, the ideal outer displacement has the Coppi–Greene–Johnson form

\xi _{r,\rm out}^{\pm }(x) = c_1^{\pm }\left |\frac {x}{r_s}\right |^{h} + c_2^{\pm }\left |\frac {x}{r_s}\right |^{-1-h}, \qquad \pm x>0. \tag{31.9}

Equivalently,

\xi _r \sim |x|^{p_\pm }, \qquad p_\pm =\frac {-1\pm \sqrt {1-4D_s}}{2}, \tag{31.10}

with \(p_+=h\) and \(p_-=-1-h\). This is the main point to keep in view: because the plasma is Suydam stable, the outer problem does not blow up into an ideal interchange catastrophe. We can therefore write the outer solution immediately. The inner resistive-layer solution for \(\Xi (X)\), derived below, must later be matched to the two coefficients \(c_1^\pm \) and \(c_2^\pm \).

This is also where \(\Delta '\) and Suydam stability separate cleanly. The \(\Delta '\)-stable condition controls the outer helical-flux matching used in the tearing lecture. Equation (31.9) controls the outer displacement matching used by the pressure-driven layer. Resistive interchange becomes possible because those are different pieces of the same global eigenfunction.

31.2 Reduced layer equations

The layer calculation uses the same resonant geometry as tearing, but it cannot be closed with the induction equation and perpendicular vorticity equation alone. In finite-pressure cylindrical geometry the magnetic perturbation parallel to the equilibrium field is a dynamical part of the layer. This is the point that is easy to hide if one jumps too quickly to a two-field model.

Layer scales. Near the rational surface,

F(r) \simeq F_s' x, \qquad x\equiv r-r_s, \qquad k_\parallel (x)\simeq \frac {F_s'}{B_s}x. \tag{31.11}

Write

\eta _m\equiv \frac {\eta }{\muo }, \qquad k_\perp \equiv \frac {m}{r_s}, \qquad L_s\equiv \left |\frac {q_s}{q_s'}\right |.

Equivalently, \(k_\parallel \simeq k_\perp \mathcal {F}_s' x\), with \(\mathcal {F}_s'\equiv (q'/q)_s\) as a signed shear. The inner induction balance is the same resistive skin-depth balance used in tearing,

d_R^2\sim \frac {\eta _m}{\gamma _R}. \tag{31.13}

The difference is in the force balance. In the interchange ordering, inertia balances the field-line-bending force \(\rho \gamma ^2 \xi \sim k_\parallel ^2 B^2 \xi \)¹ evaluated inside the layer:

\gamma _R^2 \sim V_A^2 k_\parallel ^2(d_R) \sim V_A^2 k_\perp ^2\frac {d_R^2}{L_s^2}, \qquad V_A\equiv \frac {B_s}{\sqrt {\muo \rho _s}} . \tag{31.14}

Combining Eqs. (31.13) and (31.14) gives the natural resistive-interchange scales

\gamma _R \equiv \left (\eta _m\frac {k_\perp ^2V_A^2}{L_s^2}\right )^{1/3}\sim \frac {1}{\tau _R^{1/3}\tau _A^{2/3}}, \qquad d_R \equiv \left (\frac {\eta _m}{\gamma _R}\right )^{1/2} = \left (\frac {\eta _m L_s}{k_\perp V_A}\right )^{1/3} \left (\frac {a}{L_s}\right )^{1/3}. \tag{31.15}

These are the scales behind the familiar \(\eta ^{1/3}\) resistive-interchange growth law. The dimensionless eigenvalue is not determined by this scaling argument; it comes from solving and matching the layer equations below.

Use physical parallel variables. Coppi, Greene, and Johnson decompose vectors using the non-unit basis vector \(\B _0\). That is compact, but it hides the units: their coefficient multiplying \(\B _0\) is not itself a physical displacement or a physical magnetic perturbation. We will make the parallel pieces explicit by writing

\boldsymbol {\xi } = \xi \,\hat {\mathbf r} +\xi _\parallel \,\hat {\mathbf b} +\xi _\perp \,(\hat {\mathbf r}\times \hat {\mathbf b}), \qquad \B _1 = b_r\,\hat {\mathbf r} +b_\parallel \,\hat {\mathbf b} +b_\perp \,(\hat {\mathbf r}\times \hat {\mathbf b}), \tag{31.16}

where \(\hat {\mathbf b}=\B _0/B_s\). The ambiguous \(b_b\) subscript in the printed version of their Eq. (49) should be read as the same parallel magnetic perturbation. The one-time translation from the original notation is

\xi _\parallel = B_s\,\xi _B, \qquad b_\parallel = B_s\,b_B. \tag{31.17}

After Eq. (31.17), the layer algebra below uses only \(\xi _\parallel \) and \(b_\parallel \). We also drop CGJ’s order labels \((0)\), \((1)\), and \((2)\). All quantities in Eqs. (48)–(52) below are the leading nonzero pieces in the slow-interchange ordering.

Total-pressure balance and the new parallel equation. We now write the local layer equations directly in SI units. The linearized momentum equation is

\rho \gamma ^2\boldsymbol {\xi } = -\nabla p_1 + \frac {1}{\muo }\left [(\nabla \times \B _1)\times \B _0+(\nabla \times \B _0)\times \B _1\right ], \tag{31.18}

and the induction equation is

\B _1-\frac {\eta _m}{\gamma }\nabla ^2\B _1 = \nabla \times (\boldsymbol {\xi }\times \B _0), \qquad \eta _m\equiv \frac {\eta }{\muo }. \tag{31.19}

Here \(\eta \) is the electrical resistivity and \(\eta _m\) is the magnetic diffusivity. The symbol \(\gamma \) is the growth rate; the safety factor remains \(q(r)\).

The fast magnetosonic response across the layer enforces near constancy of total pressure,

p_1+\frac {B_s b_\parallel }{\muo }\simeq 0 . \tag{31.20}

The adiabatic pressure equation gives

p_1=-p'\xi -\Gamma p\,\nabla \cdot \boldsymbol {\xi }, \tag{31.21}

where \(\Gamma \) is the ratio of specific heats and all equilibrium quantities are evaluated at \(r=r_s\). Combining Eqs. (31.20) and (31.21) gives the SI version of the CGJ total-pressure relation,

\frac {B_s b_\parallel }{\muo } = p'\xi +\Gamma p\,\nabla \cdot \boldsymbol {\xi }. \tag{48}

This relation is not optional: without Eq. (48), one cannot eliminate the compressive part of the motion and one does not obtain the correct third layer equation.

Deriving the parallel-displacement equation. The parallel displacement enters because finite pressure permits a slow, sound-like adjustment along the resonant field line. Project Eq. (31.18) along \(\hat {\mathbf b}\). The term \((\nabla \times \B _1)\times \B _0\) is perpendicular to \(\B _0\), so it drops out of this projection. The remaining equilibrium-current term may be written using force balance. Since

\frac {1}{\muo }(\nabla \times \B _0)\times \B _0=\nabla p,

the perpendicular part of the equilibrium current satisfies

\hat {\mathbf b}\times \mathbf {J}_0=-\frac {\nabla p}{B_s}, \qquad \mathbf {J}_0\equiv \frac {\nabla \times \B _0}{\muo }. \tag{31.23}

Therefore

\hat {\mathbf b}\cdot (\mathbf {J}_0\times \B _1) = \B _1\cdot (\hat {\mathbf b}\times \mathbf {J}_0) = -\frac {p'}{B_s}\,b_r . \tag{31.24}

The pressure-gradient term along the field is handled with total-pressure balance:

-\nabla _\parallel p_1 \simeq \frac {B_s}{\muo }\nabla _\parallel b_\parallel . \tag{31.25}

Near the rational surface,

k_\parallel (x)\simeq k_\perp \mathcal {F}_s' x, \qquad k_\perp \equiv \frac {m}{r_s}, \qquad \mathcal {F}_s'\equiv \left (\frac {q'}{q}\right )_s, \tag{31.26}

up to the sign convention used for the helicity. Equivalently, in the rotational-transform notation used by CGJ,

\frac {mB_s\mathcal {F}_s'}{r_s}x = \frac {m k B_z\iota _s'}{2\pi }x . \tag{31.27}

Thus \(\nabla _\parallel b_\parallel \simeq \mathrm {i}k_\parallel b_\parallel \), and the parallel component of the equation of motion becomes

\rho \gamma ^2\xi _\parallel = -\frac {p'}{B_s}\,b_r + \frac {\mathrm {i}B_s}{\muo }k_\parallel (x)b_\parallel = -\frac {p'}{B_s}\,b_r + \frac {\mathrm {i}mB_s\mathcal {F}_s'}{\muo r_s}\,x b_\parallel . \tag{49}

This is the cleaned-up SI form of CGJ Eq. (49). It says that \(\xi _\parallel \) is not an extra closure assumption; it is determined by the parallel force balance between the pressure-gradient force associated with \(b_r\) and the resonant-field-line force associated with \(b_\parallel \).

Where CGJ Eq. (52) comes from. Take the component of Eq. (31.19) parallel to \(\B _0\). Using

\nabla \times (\boldsymbol {\xi }\times \B _0) = (\B _0\cdot \nabla )\boldsymbol {\xi } - (\boldsymbol {\xi }\cdot \nabla )\B _0 - \B _0\nabla \cdot \boldsymbol {\xi }, \tag{31.28}

and keeping the leading layer derivatives gives

b_\parallel -\frac {\eta _m}{\gamma }\,b_\parallel '' = \mathrm {i}B_s k_\parallel (x)\xi _\parallel - B_s\nabla \cdot \boldsymbol {\xi } - \frac {(\muo p+B^2)'}{B_s}\,\xi . \tag{52}

The three terms on the right have distinct origins. The first is parallel stretching of the magnetic field by \(\xi _\parallel \). The second is compression. The third is the convective change of the equilibrium total-pressure constraint; in SI the combination that has the units of magnetic pressure is \(\muo p+B^2\). This is the equation that is absent from a two-field tearing derivation.

Now use Eq. (48) to eliminate the divergence,

\nabla \cdot \boldsymbol {\xi } = \frac {1}{\Gamma p}\left (\frac {B_s b_\parallel }{\muo }-p'\xi \right ) = \frac {2}{\Gamma \beta }\frac {b_\parallel }{B_s} - \frac {2\muo p'}{\Gamma \beta B_s^2}\xi , \qquad \beta \equiv \frac {2\muo p}{B_s^2}. \tag{31.29}

Then use Eq. (49) to eliminate \(\xi _\parallel \). This is the direct route from CGJ Eq. (52) to their normalized Eq. (62), but now every variable has ordinary SI units.

Normalized CGJ variables. The CGJ scale length and frequency are just the resistive-interchange layer width and rate. We therefore write them as \(d_R\) and \(\gamma _R\),

\gamma _R \equiv \left (\eta _m\frac {m^2(\mathcal {F}_s')^2V_A^2}{r_s^2}\right )^{1/3}, \qquad d_R \equiv \left (\frac {\eta _m}{\gamma _R}\right )^{1/2} = \left (\frac {\eta _m^2 r_s^2}{m^2(\mathcal {F}_s')^2V_A^2}\right )^{1/6}, \qquad V_A\equiv \frac {B_s}{\sqrt {\muo \rho }} . \tag{31.30}

These are the SI versions of the scale length and scale frequency used by CGJ. Define

X\equiv \frac {x}{d_R}, \qquad Q\equiv \frac {\gamma }{\gamma _R}, \qquad \Xi \equiv \xi , \tag{31.31}

and

\Psi \equiv \frac {\mathrm {i} r_s}{d_R m\mathcal {F}_s' B_s}\,b_r, \qquad \Upsilon \equiv \frac {D B_s}{\muo p'}\,b_\parallel . \tag{31.32}

Here \(D\) is the same Suydam drive parameter as \(D_s\), evaluated at the resonant surface, and \(\Upsilon \) is proportional to the parallel magnetic-field perturbation. It is not an independent pressure variable. Finally,

\mathcal {S}\equiv -\frac {2B_\theta ^2D}{\muo r_s p'} \tag{31.33}

is a stabilizing geometric term. Primes on \(\Psi \), \(\Xi \), and \(\Upsilon \) below denote \(d/dX\).

This coefficient deserves a little motivation because it is easy to treat it as a formal symbol. Using Eq. (31.2) together with the cylindrical relation

q_s=\frac {r_s B_z(r_s)}{R_0 B_\theta (r_s)},

one may rewrite Eq. (31.33) as

\mathcal {S} = \frac {4}{R_0^2[q_s'(r_s)]^2}. \tag{31.35}

Thus \(\mathcal S\) is controlled by the same low-shear geometry that makes \(D_s\) important in the first place. If \(q_s\sim O(1)\) and the shear length \(L_s=q_s/q_s'\) is a substantial fraction of the major radius, then \(\mathcal S\sim O(1)\). That is why finite-\(\beta \) comparisons with \(\mathcal S=0\) and \(\mathcal S\sim 1\) are both worth examining: the former isolates the compressibility effect, while the latter is closer to the natural cylindrical estimate.

The three equations to solve. The radial induction equation gives

\Psi ''=Q(\Psi +X\Xi ). \tag{60}

The annihilated perpendicular equation of motion gives

\Xi '' = \frac {X^2}{Q}\,\Xi + \frac {X}{Q}\,\Psi - \frac {1}{Q^2}\,\Upsilon . \tag{61}

The parallel induction equation, Eq. (52), after using Eqs. (31.29) and (49), gives

\Upsilon '' = Q\left (1+\frac {X^2}{Q^2}+\frac {2}{\Gamma \beta }\right )\Upsilon + Q\left (\mathcal {S}-D-\frac {2D}{\Gamma \beta }\right )\Xi + \frac {D}{Q}\,X\Psi . \tag{62}

These are the central equations of the lecture. Equation (60) is the same resistive induction balance that appears in tearing, Eq. (61) is the radial equation of motion, and Eq. (62) is the new finite-pressure equation for the parallel magnetic perturbation \(b_\parallel \). The pressure drive is distributed through \(\Upsilon \), \(D\), and \(\mathcal S\); it is not a simple additive correction to \(\Delta '\).

Caution

The signs of the \(X\Xi \) and \(X\Psi \) terms depend on the sign convention used for \(\Psi \) and for the signed shear \(\mathcal {F}_s'\). The convention above follows Coppi, Greene, and Johnson. Reversing the definition of \(\Psi \) flips those two signs but leaves the eigenvalue problem unchanged.

Low-\(\beta \) reduction. When \(\beta \ll 1\), Eq. (62) forces the leading balance

\Upsilon \simeq D\Xi . \tag{31.36}

Substituting this into Eq. (61) leaves the familiar two-field low-\(\beta \) resistive-interchange model,

\Psi ''=Q(\Psi +X\Xi ), \tag{31.37}

\Xi '' = \frac {X^2}{Q}\,\Xi + \frac {X}{Q}\,\Psi - \frac {D}{Q^2}\,\Xi . \tag{31.38}

This reduced system is useful for intuition, but the three-field system (60)–(62) is the one we should regard as the complete finite-pressure layer problem.

A useful way to think about this reduction is as a formal organizing limit. If \(\beta \ll 1\) and one begins from the singular small-\(Q\) limit, then Eq. (62) collapses to \(\Upsilon \simeq D\Xi \) and the two parity classes are nearly degenerate. But \(Q=0\) is not the physical eigenvalue. The actual matched low-\(\beta \) problem still selects a finite \(Q\), and for the standard Coppi benchmark at \(D_s=3/16\) that value is

Q \simeq 0.39685. \tag{31.39}

So the small-\(\beta \), small-\(Q\) limit is best viewed as the point from which the parity pair is organized, not as the final growth rate.

Matching to the Suydam outer solution. For \(|X|\gg 1\), the non-exponentially-growing part of the inner solution for \(\Xi \) has the same two Suydam powers as the outer solution,

\Xi _{\rm in} \sim C_3^\pm |X|^{h} + C_4^\pm |X|^{-1-h}, \qquad \pm X>0, \tag{31.40}

after the exponentially growing pieces have been excluded. Matching Eq. (31.40) to Eq. (31.9) gives

\frac {C_3^\pm }{C_4^\pm } = \left (\frac {d_R}{r_s}\right )^{1+2h} \frac {c_1^\pm }{c_2^\pm }. \tag{31.41}

This is the promised logical structure: the ideal Suydam solution supplies the outer displacement data, while the resistive layer supplies \(C_3^\pm /C_4^\pm \) as a function of \(Q\). Solving the eigenvalue problem means adjusting \(Q\) until these two ratios match.

In practice, it is often cleaner numerically to impose the decaying-branch condition directly. Since the outer Suydam-stable solution is the \(|X|^{-1-h}\) branch, one may instead regard the eigenvalue search as the condition

C_3^\pm (Q)=0. \tag{31.42}

That is the diagnostic used in the figures below. For each trial \(Q\), one solves the boundary value problem on \(X>0\), removes the exponentially growing large-\(X\) pieces, fits the remaining algebraic tail to Eq. (31.40), and then varies \(Q\) until the coefficient \(C_3^\pm \) vanishes.

Parity-resolved shooting conditions. Because Eqs. (60)–(62) are invariant under \(X\to -X\) if \(\Psi \) has the opposite parity to \(\Xi \) and \(\Upsilon \), one may shoot on \(X>0\). The interchange-like, or CGJ-even, basis has

\Xi (0)=1,\qquad \Xi '(0)=0,\qquad \Psi (0)=0,\qquad \Upsilon '(0)=0, \tag{31.43}

with the remaining two initial values adjusted to kill the exponentially growing large-\(X\) solutions. The tearing-like, or CGJ-odd, basis has

\Xi (0)=0,\qquad \Psi (0)=1,\qquad \Psi '(0)=0,\qquad \Upsilon (0)=0, \tag{31.44}

again with two shooting parameters. Once the large-\(X\) solution has been cleaned of exponentially growing pieces, Eq. (31.41) gives the matching condition to the ideal outer region. This is the numerical problem we will solve later.

Interactive Resistive-Interchange Parity Explorer

Open a browser companion to the lecture’s parity competition. The app organizes the local problem in terms of \(D_s\), \(\Gamma\beta\), the geometric stabilization \(\mathcal S\), and outer \(\Delta\!\!\prime\), then shows how the interchange-like and tearing-like branches separate as pressure drive and shear are varied.

Open the resistive-interchange explorer

For a quick check of \(\tau_A\), \(\tau_R\), Lundquist number, collision rates, and the benchmark resistive times used in these orderings, open the Braginskii formulary calculator.

31.3 Two parity branches

Because the coefficients of the full system (60)–(62) are invariant under \(X\to -X\) provided \(\Psi \) has the opposite parity to \(\Xi \) and \(\Upsilon \), there are two natural parity basis solutions of the inner problem. A generic global eigenmode need not have pure parity once the outer matching is imposed, but these two basis solutions are the natural local building blocks.

Interchange-like parity. Take \(\Xi \) and \(\Upsilon \) even and \(\Psi \) odd. Then at the layer center,

\Xi (0)\neq 0, \qquad \Xi '(0)=0, \qquad \Psi (0)=0, \qquad \Psi '(0)\neq 0. \tag{31.45}

This is the natural resistive descendant of the ideal interchange mode: the plasma displacement is largest on the resonant surface, while the helical flux changes sign there. At lowest order, this branch is therefore not island-forming.

Tearing-like parity. Take \(\Xi \) and \(\Upsilon \) odd and \(\Psi \) even. Then

\Xi (0)=0, \qquad \Xi '(0)\neq 0, \qquad \Psi (0)\neq 0, \qquad \Psi '(0)=0. \tag{31.46}

Now the perturbed helical flux is finite right at the resonant surface, so the mode has the same topological content as an ordinary tearing mode. The island half-width is therefore still given by Eq. (30.67). This is the branch associated with pressure-driven islands in a \(\Delta '\)-stable plasma.

Caution

The tearing-like branch is not just “tearing plus a small pressure correction.” It is a distinct parity class of the same layer problem. In the limit \(D_s\to 0\) it reduces to classical tearing; at finite \(D_s\) it can live on pressure-gradient free energy that is completely absent from the pure-\(\Delta '\) theory.

31.4 Which mode grows?

The parity classification tells us the topology of the mode, but not yet which branch actually wins the eigenvalue competition. To answer that question, one must solve the parity-resolved inner problem and impose the large-\(X\) matching condition.

Low-\(\beta \) benchmark: near degeneracy. At \(D_s=3/16\), the low-\(\beta \) two-field problem gives the standard Coppi benchmark (31.39). Numerically, the even and odd parity branches are then almost degenerate: both hit the same matched eigenvalue to within the numerical accuracy of the finite domain and asymptotic fit. Figure 31.1 shows the corresponding parity basis functions, while Fig. 31.2 shows the matching diagnostic used to recover the benchmark \(Q\).

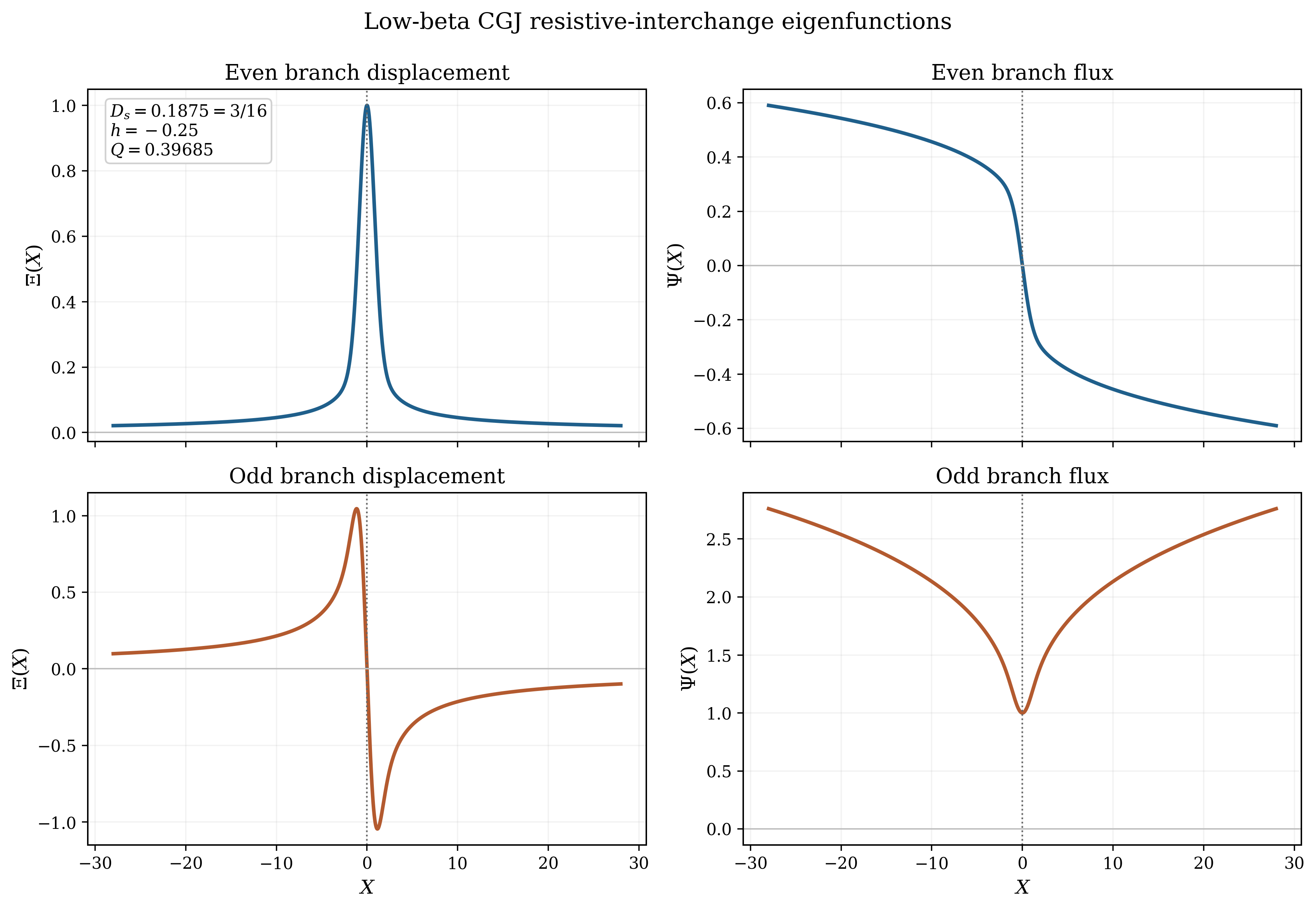

Figure 31.1: Low-\(\beta \) Coppi–Greene–Johnson benchmark at \(D_s=3/16\). The even interchange-like basis and the odd tearing-like basis are shown at the matched low-\(\beta \) eigenvalue \(Q\simeq 0.39685\). In this limit the two parities are nearly degenerate in growth rate, even though they differ topologically.

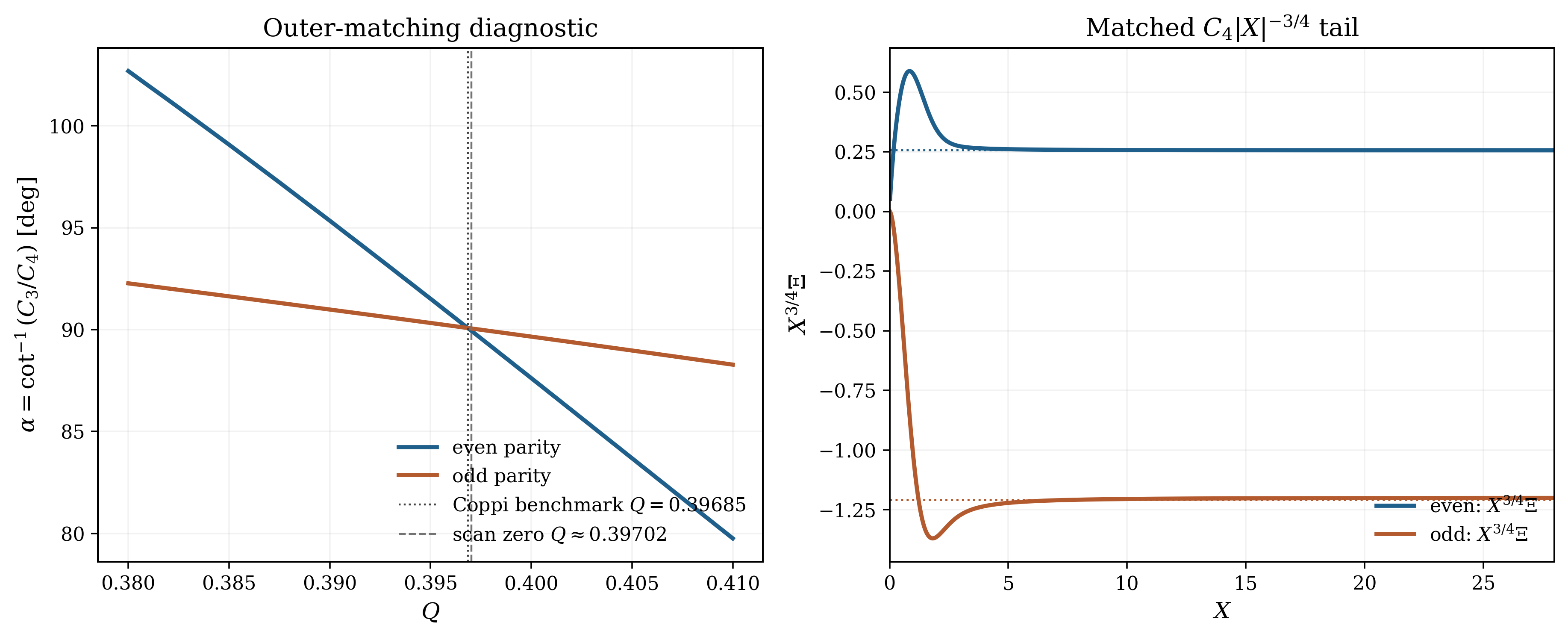

Figure 31.2: Low-\(\beta \) matching diagnostic for the same benchmark. The algebraic tail of the inner solution is fitted to \(\Xi \sim C_3 |X|^h + C_4 |X|^{-1-h}\), and the eigenvalue is determined by adjusting \(Q\) until the non-decaying coefficient \(C_3\) vanishes.

Finite-\(\beta \): the degeneracy is lifted. Once the full three-field system (60)–(62) is retained, the even and odd branches separate. To compare like with like, the \(\beta \)-scan shown below follows the high-\(Q\) continuation connected continuously to the low-\(\beta \) Coppi branch. This avoids jumping to unrelated tiny-\(Q\) roots that can also appear in the full three-field problem.

For the representative case

\Gamma =\frac 53, \qquad \beta =0.10, \qquad \Gamma \beta =\frac 16,

the matched roots are

(Q_{\rm even},Q_{\rm odd})=(0.30978,0.37390) \qquad \text {for } \mathcal S=0,

whereas

(Q_{\rm even},Q_{\rm odd})=(0.15627,0.33714) \qquad \text {for } \mathcal S=1.

Thus finite pressure breaks the low-\(\beta \) parity degeneracy, and the stabilizing geometric term \(\mathcal S\) pushes the even branch downward much more strongly than the odd branch.

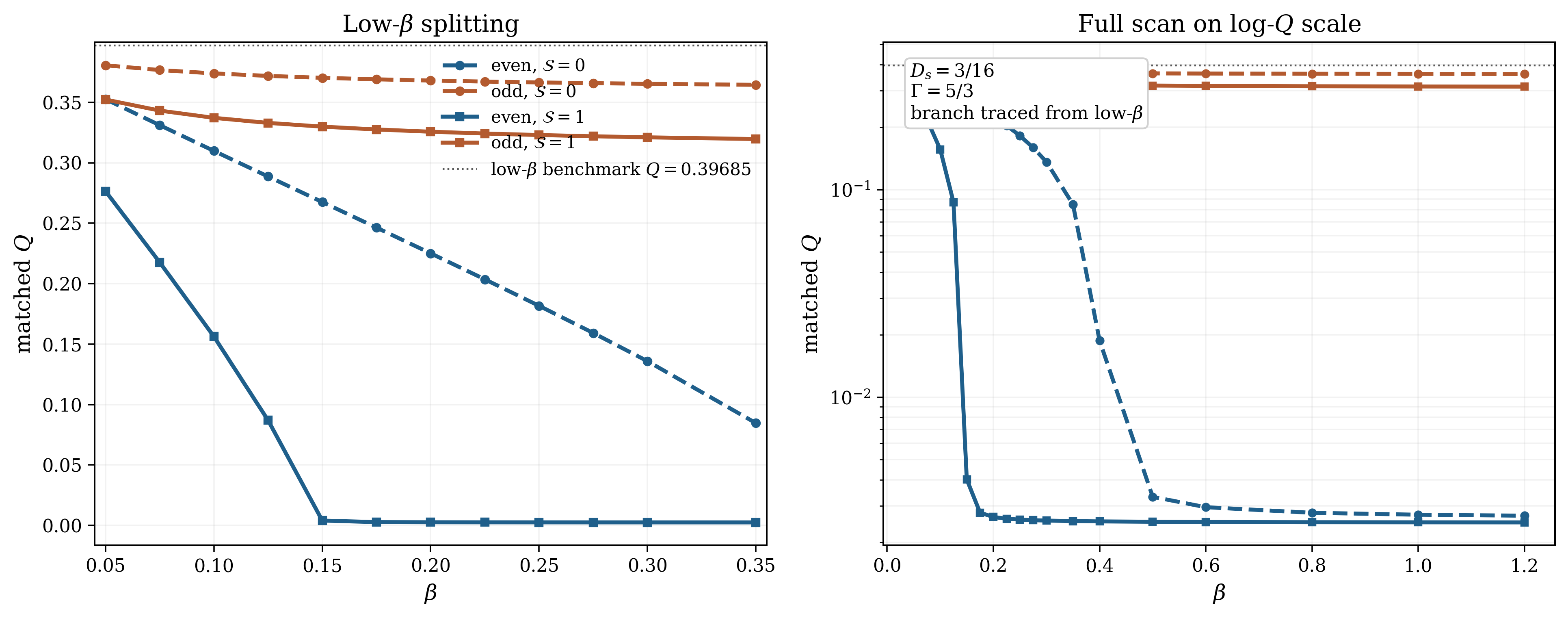

Figure 31.3: Finite-\(\beta \) splitting of the two CGJ parity branches at fixed \(D_s=3/16\). Dashed curves use the illustrative closure \(\mathcal S=0\), while solid curves use \(\mathcal S=1\), motivated by the estimate \(\mathcal S\sim 4/\!\left (R_0^2 (q')^2\right )\sim O(1)\) in a low-shear core. Left: the low-\(\beta \) region on linear axes, where the two branches separate smoothly from the nearly degenerate Coppi limit. Right: the same branch continuation on a logarithmic \(Q\) scale. The odd branch remains order unity, whereas the even branch is driven to much smaller \(Q\) and therefore becomes subdominant.

Which mode is most likely to grow? Since the physical growth rate is \(\gamma = Q\gamma _R\), the larger positive value of \(Q\) is the faster-growing branch at fixed local resistive-interchange scale \(\gamma _R\). Figure 31.3 therefore answers the question directly: the tearing-like odd branch is the branch most likely to dominate once finite-\(\beta \) effects become important. It remains on an order-unity \(Q\) branch, while the interchange-like even branch is pushed toward much smaller \(Q\), especially when \(\mathcal S\sim 1\).

Why this is also the island-forming mode. This dynamical dominance matters topologically because the odd branch is exactly the one with \(\Psi (0)\neq 0\). From Eq. (31.32), \(\Psi \) is proportional to the radial magnetic perturbation \(b_r\), so finite \(\Psi (0)\) means finite \(b_r\) right in the layer. The mode therefore reconnects field lines and produces a genuine magnetic island, just as in ordinary tearing. By contrast, the even branch has \(\Psi (0)=0\) and is not island-forming at lowest order. So the same parity branch that is numerically more robust at finite \(\beta \) is also the branch that produces observable pressure-driven islands in a \(\Delta '\)-stable plasma.

31.5 How a negative \(\Delta '\) can still give islands

The outer ideal region is solved exactly as in the tearing lecture. One again obtains the logarithmic matching index

\Delta ' = \left .\frac {\psi '}{\psi }\right |_{r_s^-}^{r_s^+}.

If \(D_s=0\), the tearing-parity branch collapses to the classical FKR problem and Eq. (30.59) is recovered. At finite pressure gradient, however, (31.38) shows that the layer contains a second source of free energy.

The key qualitative point. For the tearing-like branch, the matching relation is no longer a pure \(\Delta '\leftrightarrow \gamma ^{5/4}\) FKR law. The pressure-gradient term contributes a second, destabilizing part to the layer response. In Coppi’s language, that is why a mode can remain unstable even when the classical outer tearing index would by itself predict stability Coppi et al. (1966). Put differently, \(\Delta '\) is still part of the answer, but it is no longer the only place where the free energy enters.

Why low shear helps this happen. The same statement can be made with no formal dispersion relation at all. Since \(D_s\propto |p'|/[q']^2\), reducing the shear makes the pressure term larger. Since the interchange drive sits inside the resistive layer, it is the tearing-like parity that translates that drive into a finite \(\psi (0)\), and therefore into islands. That is the simplest mathematical route from “buoyancy” to “reconnection.”

So is there a pressure-gradient threshold analogous to \(\Delta '\)? There is a clean local onset parameter, but it is not \(p'\) by itself. In cylindrical form it is \(D_s\), because pressure enters only in combination with curvature and magnetic shear: Eq. (31.2). With the sign conventions used here, \(D_s>0\) means that the local pressure-curvature term is destabilizing, while the stronger ideal-Suydam threshold is \(D_s>1/4\). So the transparent local resistive-interchange onset statement is precisely the window already identified in Eq. (31.4): \[ 0<D_s<\frac 14. \] That is the closest pressure-gradient analogue of a one-number threshold.

But it is not a replacement for \(\Delta '\). The two quantities answer different questions. \(\Delta '\) is an outer matching index: it tells us how the ideal magnetic solution leans into the inner layer. \(D_s\) is an inner drive coefficient: it tells us whether pressure and curvature can feed energy into that layer once the resonant geometry is present. For the pure interchange-like branch, \(D_s>0\) is already the essential local instability condition. For the tearing-like branch, however, island formation still depends on how that local drive couples to the outer solution, so the onset is really a condition in the \((D_s,\Delta ')\) plane, not a single critical value of \(p'\).

This is exactly what becomes more explicit in toroidal geometry. In the Glasser–Greene–Johnson formulation the local quantity \(D_s\) is replaced by its toroidal counterpart \(D_R\). Pure resistive interchange is stable when \(D_R<0\), but the tearing branch is not then determined by pressure alone: favorable curvature can instead raise the threshold so that the outer matching parameter must exceed a critical value \(A_c\) (equivalently a critical \(\Delta '_c\)) before the modified tearing mode becomes unstable.

31.6 A worked example: outer tearing stable, pressure driven inside

It is helpful to write one example all the way through. Reuse the current profile from the tearing lecture,

J_z(r)= \begin {cases} J_0, & 0<r<c,\\[4pt] 0, & c<r<a, \end {cases} \tag{31.51}

so that the outer \(m=2\) tearing index is given by Eq. (30.34). Add a smooth pressure profile,

p(r)=p_0\left (1-\frac {r^2}{a^2}\right ), \qquad p'(r)=-\frac {2p_0 r}{a^2}. \tag{31.52}

In the current-free annulus of the step-current equilibrium,

q(r)=q_c\frac {r^2}{c^2}, \qquad \frac {q'(r)}{q(r)}=\frac {2}{r}.

Substituting this into (31.2) gives

D_s = -\frac {2\muo q_s^2}{r_s B_z^2 q_s'^2}\,p'(r_s) = -\frac {\muo r_s}{2B_z^2}p'(r_s) = \frac {\muo p_0}{B_z^2}\frac {r_s^2}{a^2}. \tag{31.54}

If we define a guide-field beta based on \(B_z\),

\beta _z \equiv \frac {2\muo p_0}{B_z^2},

then

D_s = \frac {\beta _z}{2}\frac {r_s^2}{a^2}. \tag{31.56}

Thus Suydam stability requires

\frac {\beta _z}{2}\frac {r_s^2}{a^2}<\frac 14.

Now choose

\frac {c}{a}=0.50, \qquad \frac {r_s}{a}=0.80, \qquad m=2, \qquad \beta _z=0.30. \tag{31.58}

Then

D_s = \frac {0.30}{2}(0.80)^2 = 0.096 < \frac 14,

so the surface is ideally Suydam-stable.

At the same time, the tearing lecture gives

x\equiv \frac {c}{r_s}=0.625, \qquad y\equiv \frac {a}{r_s}=1.25,

and therefore, from Eq. (30.34),

\Delta ' = \frac {4}{r_s} \frac {2x^2y^4-x^4-y^4}{(1-x^2)^2(y^4-1)} \approx -\frac {6.41}{a} < 0. \tag{31.61}

So the outer current profile by itself is tearing stable, while the local ideal problem is also stable. Nevertheless \(D_s>0\), and because the tearing-like parity has \(\Psi (0)\neq 0\), the pressure gradient can still drive an island-forming resistive branch. This is exactly the regime in which the lecture earns its keep: a \(\Delta '\)-stable plasma can still reconnect because the free energy is no longer purely magnetic.

Make the instability explicit. For this particular choice the local shear length is

L_s = \left |\frac {q_s}{q_s'}\right | = \frac {r_s}{2} = 0.40\,a, \qquad k_\perp = \frac {m}{r_s} = \frac {2.5}{a}. \tag{31.62}

Hence the characteristic resistive-interchange rate from Eq. (31.15) is

\gamma _R = \left (\eta _m\frac {k_\perp ^2 V_A^2}{L_s^2}\right )^{1/3} = \left (39.1\,\frac {\eta _m V_A^2}{a^4}\right )^{1/3}. \tag{31.63}

To keep the worked example analytic, use the transparent local estimate

\gamma _{\rm RI} \sim D_s^{1/3}\gamma _R . \tag{31.64}

An exact prefactor requires solving the parity-selected inner problem (60)–(62) and imposing the matching condition (31.41). The estimate only fixes the natural positive growth scale. For the present surface, \(D_s=0.096\),

\gamma _{\rm RI} \sim (0.096)^{1/3}\gamma _R \approx 0.46\,\gamma _R \approx 1.57\left (\frac {\eta _m V_A^2}{a^4}\right )^{1/3} >0.

So this equilibrium is not merely “Suydam stable” and “\(\Delta '\)-stable.” It still has a positive resistive-interchange growth rate. Because the branch we are following has tearing parity, \(\psi (r_s,t)\) is finite and grows like

\psi (r_s,t)\propto e^{\gamma _{\rm RI} t},

which means that the island half-width from Eq. (30.67) grows as

w(t)\propto |\psi (r_s,t)|^{1/2}\propto e^{\gamma _{\rm RI} t/2}. \tag{31.67}

That is the last logical step the example needs: the mode is outer tearing stable, locally ideal stable, and still island-forming because the pressure-gradient drive lives inside the resistive layer.

What this example teaches. The example is intentionally simple, but the logic is robust.

1.: The sign of \(\Delta '\) is controlled mainly by the current profile and the exterior solution.
2.: The sign and size of \(D_s\) are controlled by the pressure gradient and the magnetic shear.
3.: A positive local resistive-interchange root \(\gamma _{\rm RI}>0\) with tearing parity turns pressure drive into actual island growth, \(w\propto e^{\gamma _{\rm RI} t/2}\), rather than into purely convective flute motion.

That separation of roles is physically useful, and it is the main reason this lecture sits naturally near the tearing lecture.

A toroidal caution. This lecture is intentionally cylindrical, so the local ideal criterion here is Suydam, not Mercier. In a tokamak, Mercier replaces Suydam on the ideal side, while the resistive layer is described by the toroidal Glasser–Greene–Johnson generalization. The important lesson is that ideal local stability and resistive-layer stability are related but not identical: Mercier stability removes the immediate ideal catastrophe, but it does not by itself eliminate pressure-driven resistive layer physics.

31.7 Experimental Perspective: flux pumping and hybrid operation

The cylindrical analysis is not yet a tokamak hybrid discharge² , but it already contains the seed of that story. A low-shear core with \(q\approx 1\) is exactly the place where a pressure-driven \((m,n)=(1,1)\) mode can compete with the ordinary internal kink. In modern toroidal language, one often calls that saturated, low-shear branch a quasi-interchange mode.

Jardin’s flux-pumping picture. Three-dimensional resistive-MHD simulations by Jardin, Ferraro, and Krebs found stationary helical core states in which a saturated central interchange-like mode drives a near-helical flow and an effective dynamo loop voltage, thereby keeping the central safety factor close to unity rather than letting it fall into ordinary sawtoothing Jardin et al. (2015). The more detailed follow-on analysis of Krebs et al. showed that, in hybrid-like conditions, the dominant nonlinear mechanism is a saturated \((m,n)=(1,1)\) quasi-interchange instability that generates an effective negative loop voltage in the plasma center Krebs et al. (2017). Jardin, Krebs, and Ferraro later recast that same idea as a candidate explanation of the longstanding sawtooth problem in auxiliary-heated tokamaks Jardin et al. (2020).

Why the hybrid scenario is the natural home for this physics. The JET hybrid scenario was explicitly developed as an ITER-relevant mode of operation with \(q_0\) or \(q_{\min }\) near unity, low central shear, long pulse duration, and improved stability margins Joffrin et al. (2005). DIII-D later emphasized that high-\(\beta _N\) hybrid operation is attractive for ITER and FNSF steady-state missions, precisely because the current profile can be kept broad while avoiding deleterious core activity Turco et al. (2015). More recently, ASDEX Upgrade reported direct experimental evidence of magnetic flux pumping in a sawtooth-free hybrid scenario, with the central safety factor clamped close to unity by anomalous current redistribution Burckhart et al. (2023).

What survives from the cylindrical lecture. The full tokamak problem is toroidal, nonlinear, and three-dimensional; it contains bootstrap current, heating and current-drive source terms, toroidal coupling, and real transport. But the simple cylindrical lecture still teaches the central analytic lesson: in a low-shear core, a pressure-driven resistive mode can have either convective or island-forming parity, and the latter provides a clean route to current redistribution. That is why this old pinch problem still feels surprisingly modern.

Takeaways

The relevant cylindrical resistive-interchange window is \(0<D_s<1/4\): pressure drive is present, but ideal Suydam instability has not yet appeared.

In toroidal geometry Suydam is replaced on the ideal side by Mercier, but ideal local stability still does not by itself settle the resistive-layer problem.

Low magnetic shear matters because \(D_s\propto |p'|/[q']^2\).

The inner resistive problem has two parity classes. The interchange-like branch has \(\Psi (0)=0\); the tearing-like branch has \(\Psi (0)\neq 0\) and therefore forms islands.

A negative classical tearing index \(\Delta '\) does not guarantee stability once pressure-gradient drive is allowed to enter the layer.

The modern flux-pumping / hybrid-scenario story is the toroidal, nonlinear descendant of the same low-shear pressure-driven physics.

Bibliography

Harold P. Furth, John Killeen, and Marshall N. Rosenbluth. Finite-resistivity instabilities of a sheet pinch. Physics of Fluids, 6(4):459–484, 1963. doi:10.1063/1.1706761.

Bruno Coppi, John M. Greene, and John L. Johnson. Resistive instabilities in a diffuse linear pinch. Nuclear Fusion, 6(2):101–117, 1966. doi:10.1088/0029-5515/6/2/003.

J Stober, A C C Sips, C Angioni, C B Forest, O Gruber, J Hobirk, L D Horton, C F Maggi, M Maraschek, P Martin, P J Mc Carthy, V Mertens, Y S Na, M Reich, A Stäbler, G Tardini, and H Zohm. The role of the current profile in the improved h-mode scenario in ASDEX upgrade. Nuclear Fusion, 47(8):728–737, 2007. ISSN 0029-5515. doi:10.1088/0029-5515/47/8/002.

S. C. Jardin, N. Ferraro, and I. Krebs. Self-organized stationary states of tokamaks. Physical Review Letters, 115(21):215001, 2015. doi:10.1103/PhysRevLett.115.215001.

I. Krebs, S. C. Jardin, S. Günter, K. Lackner, M. Hölzl, E. Strumberger, and N. Ferraro. Magnetic flux pumping in 3d nonlinear magnetohydrodynamic simulations. Physics of Plasmas, 24(10):102511, 2017. doi:10.1063/1.4990704.

S. C. Jardin, I. Krebs, and N. Ferraro. A new explanation of the sawtooth phenomena in tokamaks. Physics of Plasmas, 27(3):032509, 2020. doi:10.1063/1.5140968.

E. Joffrin, A. C. C. Sips, J. F. Artaud, A. Bécoulet, L. Bertalot, R. Budny, P. Buratti, P. Belo, C. D. Challis, F. Crisanti, M. De Baar, P. de Vries, C. Gormezano, C. Giroud, O. Gruber, G. T. A. Huysmans, F. Imbeaux, A. Isayama, X. Litaudon, P. J. Lomas, D. C. McDonald, Y. S. Na, S. D. Pinches, A. Staebler, T. Tala, A. Tuccillo, K. D. Zastrow, and JET-EFDA Contributors. The ‘hybrid’ scenario in JET: Towards its validation for ITER. Nuclear Fusion, 45(7):626–634, 2005. doi:10.1088/0029-5515/45/7/010.

Francesca Turco, Clinton C. Petty, Timothy C. Luce, Thomas N. Carlstrom, Michael A. Van Zeeland, William Heidbrink, Francesco Carpanese, Wayne M. Solomon, Christopher T. Holcomb, and John R. Ferron. The high-\(\beta _N\) hybrid scenario for ITER and FNSF steady-state missions. Physics of Plasmas, 22(5):056113, 2015. doi:10.1063/1.4921161.

A. Burckhart, A. Bock, R. Fischer, T. Pütterich, J. Stober, S. Günter, A. Gude, J. Hobirk, M. Hölzl, V. Igochine, I. Krebs, M. Maraschek, M. Reisner, and the ASDEX Upgrade Team. Experimental evidence of magnetic flux pumping in ASDEX upgrade. Nuclear Fusion, 63(12): 126056, 2023. doi:10.1088/1741-4326/ad067b.

Problems

Problem 31.1.: Starting from Eq. (31.2), derive Eq. (31.54) for the parabolic pressure profile (31.52).
Problem 31.2.: For the numerical choice (31.58), verify explicitly that \(D_s<1/4\) while Eq. (31.61) gives \(\Delta '<0\).
Problem 31.3.: Show directly from Eqs. (60)–(62) that \(\Psi \) must have the opposite parity to \(\Xi \) and \(\Upsilon \).
Problem 31.4.: Using Eq. (31.15), estimate how the resistive-interchange growth rate changes if the magnetic shear is reduced by a factor of two while all other equilibrium quantities are held fixed.
Problem 31.5.: Explain in words why the tearing-like parity is the one relevant for flux-pumping and current-redistribution discussions in low-shear hybrid plasmas.
